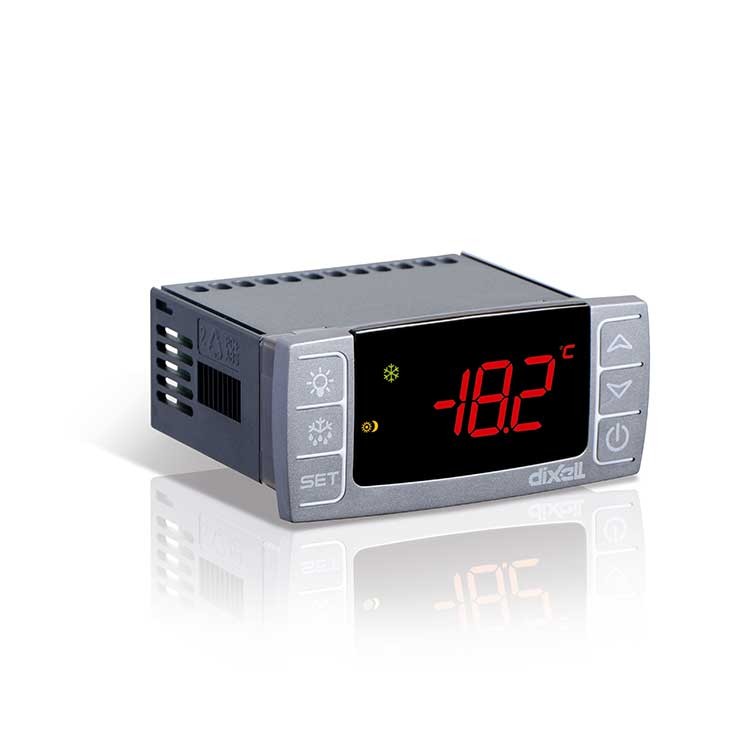

Dixell XR10CX-5N0C0
- Innovative digital controllers dedicated to heat and NT and LT refrigeration
- Easy and intuitive programming mode
- On/off key
- Energy saving cycles through digital input
- Outputs restart with door open alarm
- Temperature Max and Min functions
- Configurable digital input also as probe
- Virtual probe management
- Functions for refrigerated air dryers in automation processes
- Condenser temperature management to prevent critical plant situations
- Hot Key or Prog Tool Kit connector for quick and easy programming
- Serial connection to monitoring systems (via XJ485CX)
- Connection for X-REP remote display (alternative to TTL output)
- 3VA max power absorption
- Display with red LED (10,5mm high) and icons
$59.90
No tax
XR10CX-5N0C0
- Display
- 3 digits, d.p.
- Power supply
- 230Vac
- Probe
- NTC / PTC
- Condenser
- NTC / PTC on HOT KEY
- Compressor
- 8A
- Hot Key output
- present
- Remote display output
- no
- Serial output
- TTL
- Buzzer
- no
- Measurement range
- probe dependent
- Accuracy
- Better than 1% of full scale
- Housing
- Self extinguishing ABS
- Front protection
- IP65
- Display type
- red LED (13mm high) with icons
- Data Storage
- on the non-volatile memory (EEPROM)
- Operating temperature
- 0°÷60°C, 32°÷140°F
- Storage temperature
- -25°÷60°C, -13°÷140°F
- Relative humidity
- 20÷85%
- Resolution
- 0.1°C or 1°F
