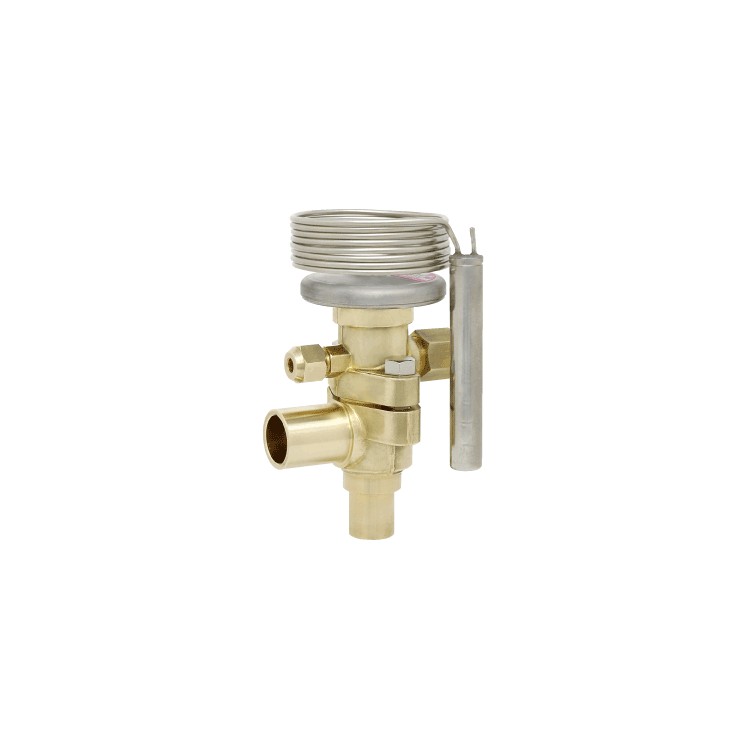

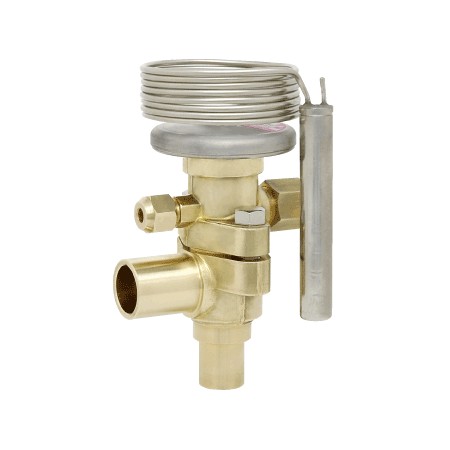

Saginomiya expansion valve ATX-12220DHS R22
VALVE NOMENCLATURE
Catalog No. is decided according to the specifications.
Example:ATX(Ⅰ) – 34006(Ⅱ) B(Ⅲ) H(Ⅳ) L(Ⅴ)
Ⅰ: Type...... ATX–Thermostatic expansion valve for general use.
Ⅱ: Model...... The first and second digits indicate inlet and outlet pipe size respectively.
The last three digits indicate nominal capacity.
Ⅲ: Connection...... B–Flare Nut Connection, D–Solder Connection
Ⅳ: Refrigerant...... M ＝ R134a, H ＝ R22, U ＝ R404A, P ＝ R407C
Ⅴ: Charge type...... G ＝ G–charge, L ＝ L–charge, C ＝ C–charge, CL ＝ CL–charge, CY ＝ CY–charge,
S ＝ S–charge, SL ＝ SL–charge
$458.00
No tax
- Application: General refrigeration and air conditioning
system. - In cases where the evaporation temperature is −20°C
or lower, S–charge type is best suited for heat-pump air
conditioners and unloading system attached devices.
ATX-12220DHS
- Inlet 1 connection size [in]
- 1
- Outlet 1 connection size [in]
- 1-1/4
- Refrigerant
- R22
- Equalizer connection
- 1/4
- Capillary tube length
- φ3 × 3000mm
