The DML filter drier is designed for air conditioning systems that require high moisture removal capacity. DML filter driers are optimized for HFC refrigerants and mineral or benzene oils. The filter driers are hermetic and approved for 46 bar. DML filter driers are delivered with flare or copper/copper plated steel connections.
DCL filter driers are designed for applications requiring high moisture removal capacity as well as acid adsorption capacity. The DCL filter driers have the same wide application range and benefits as the DML filter driers.
Both the DML and the DCL filter driers are available with solder (Cu-plated steel connectors) and flare connections.

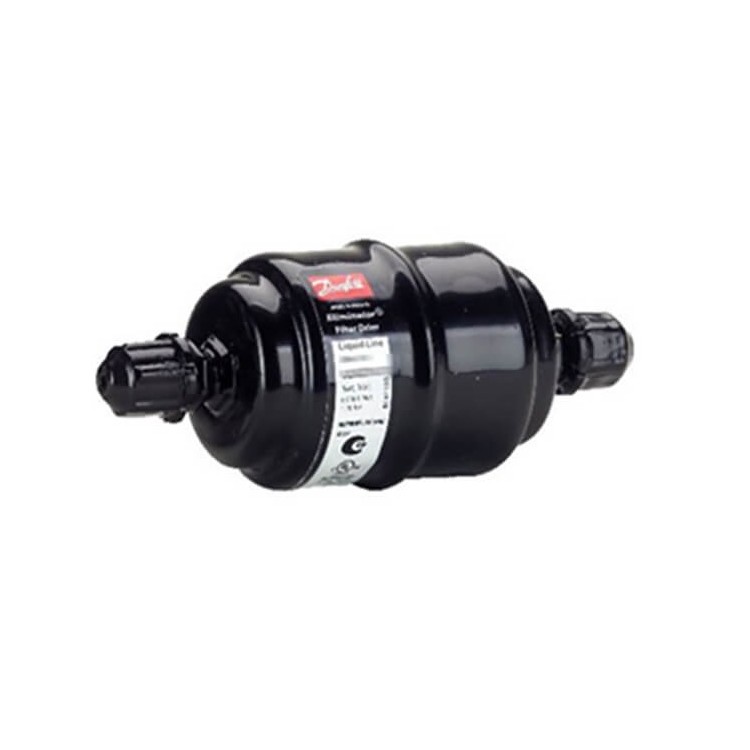

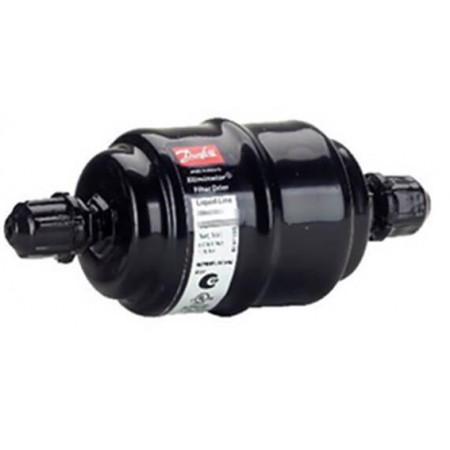

DCL-053
- Weight
- 0.2Kg
- Activated alum/Molec sieve [%]
- 20% / 80%
- Connection material
- Steel
- Core
- Solid core
- Core Size code
- 05 cu.in.
- Drying Cap[Drops of Water]24°C
- R134a: 76 ; R290: -- R32: 64 ; R404A: 79 ; R407C: 74 ; R410A: 69 ; R507: 83
- Drying Cap[Drops of Water]52°C
- R134a: 69 ; R290: -- R32: 59 ; R404A: 75 ; R407C: 68 ; R410A: 61 ; R507: 74
- Flow capacity [kW]
- R134a: 12.1 ; R290: -- R32: 18.4 ; R404A: 8.5 ; R407C: 12.4 ; R410A: 12.6 ; R507: 8.2
- Flow capacity [TR]
- R134a: 3.4 ; R290: -- R32: 5.2 ; R404A: 2.4 ; R407C: 3.5 ; R410A: 3.6 ; R507: 2.3
- Inlet 1 connection size [in]
- 3/8in
- Inlet connection size [mm]
- 10mm
- Connection type
- Flare
- LiqCap Cond (ARI 710-2009)[SI]
- Delta p(0.07bar) ; tliq(-30°C) ; tvap(-15°C)
- LiqCapCond (ARI 710-2009)[IMP]
- DELTA P(1PSI) ; tliq(86°F); tvap(5°F)
- Lubricants compatibility
- Oilfree applications
- Max. Working Pressure [bar]
- 46 bar
- Max. Working Pressure [psig]
- 667 psig
- Net volume [l]
- 0.051 L
- Outlet 1 connection size [in]
- 3/8"
- Outlet connection size [mm]
- 10mm
