The KP pressure switches from Danfoss are optimized for light and heavy commercial refrigeration providing excellent protection against low suction pressure or high discharge pressure. KP pressure switches are used for starting and stopping refrigeration compressors and fans on air-cooled condensers.
KP thermostats are single-pole, double-throw (SPDT) temperature operated electric switches. KP is used for regulation, but can also be applied in safety monitoring systems.
With the KP pressure switches you get great reliability and long service life due to the snap-action function ensuring ultra-short bounce times. The KP pressure switch is available with IP30, IP44 and IP55 enclosures for appropriate protection based on the application.

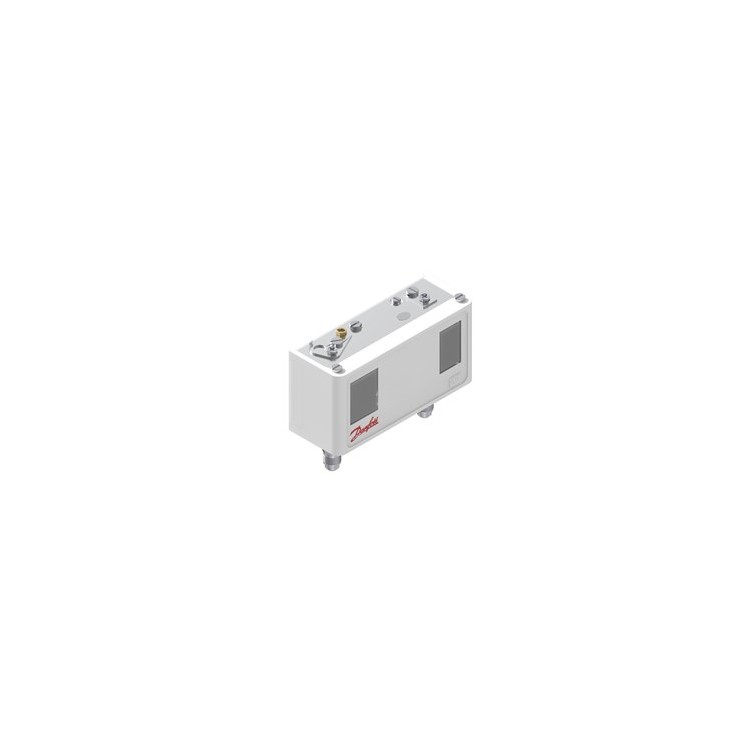

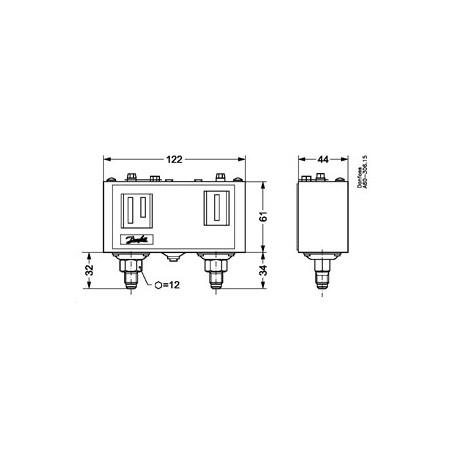

KP-15 (Auto)
- Electrical connection size
- 6-14 mm
- Contact rating
- AC15 (10 A, 400 V) ; AC1 (16 A, 400 V) ; AC3 (16 A, 400 V) ; DC13 (12 W, 220 V); LR (112 A, 400 V)
- Pressure connection size
- 1/4"
- Enclosure rating IP
- IP30
- Differential left side [Max]
- 4 bar (58psi)
- Differential left side [Min]
- 0.7 bar (10psi)
- Differential right side
- 4bar (58psi)
- MWP left side Pe
- 17bar ( 245psi )
- MWP right side Pe
- 35bar ( 510 psig )
- Regulation left side range Pe
- -0.2 - 7.5bar ( 6 inHg - 108 psig )
- Regulation right side Pe
- 8 - 32bar ( 116 - 464psig )
- Reset function, left side
- not present
- Reset function, right side
- not present
