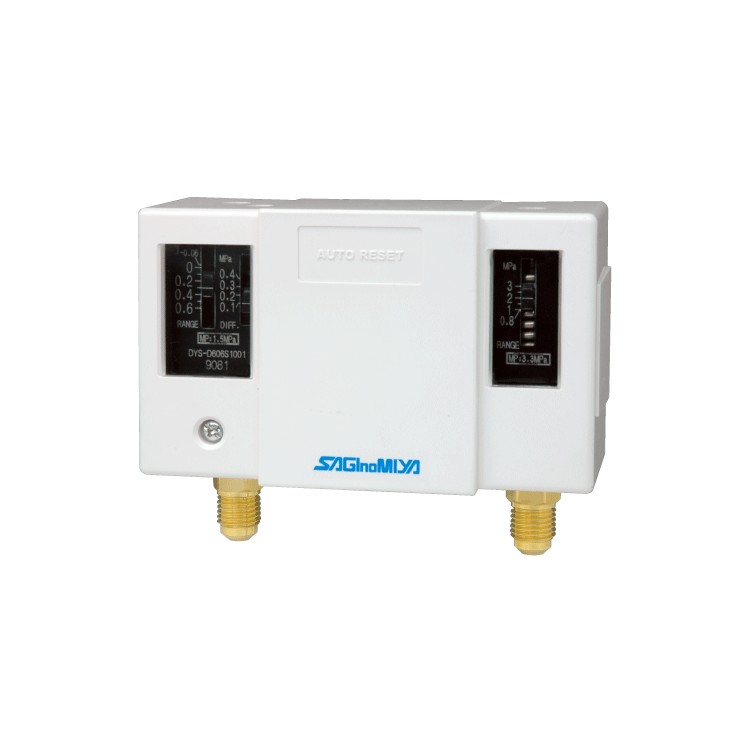

Saginomiya DYS-D606X24MMA dual scale
- Type DYS is dual pressure controls that is integrated
with over pressure protection of the high pressure side
and control of low pressure side of the refrigeration unit. - Scale plate with significantly clear visibility
- Compact and light weight
- Fluid temperature: －20 to 120°C
- Ambient temperature: －20 to 70°C
$46.00
No tax
Compact size smallest and lightest in the industry.
Scale plate with significantly clear visibility.
For universal application.
DYS-D606XMM24A
- Connection
- 1/4"
- Refrigerant
- R22
R134a
R404a
R407C
- Reset function, left side
- present
- Reset function, right side
- present
- Operat. range LP side Pe [Max]
- 0.6MPa (6kgf/cm2)
- Operat. range LP side Pe [Min]
- -0.06MPa (-50cmHg)
- Fixed Differential
- 0.5 MPa (5kgf/cm2)
- Diff.press.setting range [Max]
- 0.3MPa (3kgf/cm2)
- Diff.press.setting range [Min]
- 0.1MPa (1kgf/cm2)
- Operat. range HP side Pe [Min]
- 0.8MPa (8kgf/cm2)
- Operat. range HP side Pe [Max]
- 3MPa (30kgf/cm2)
