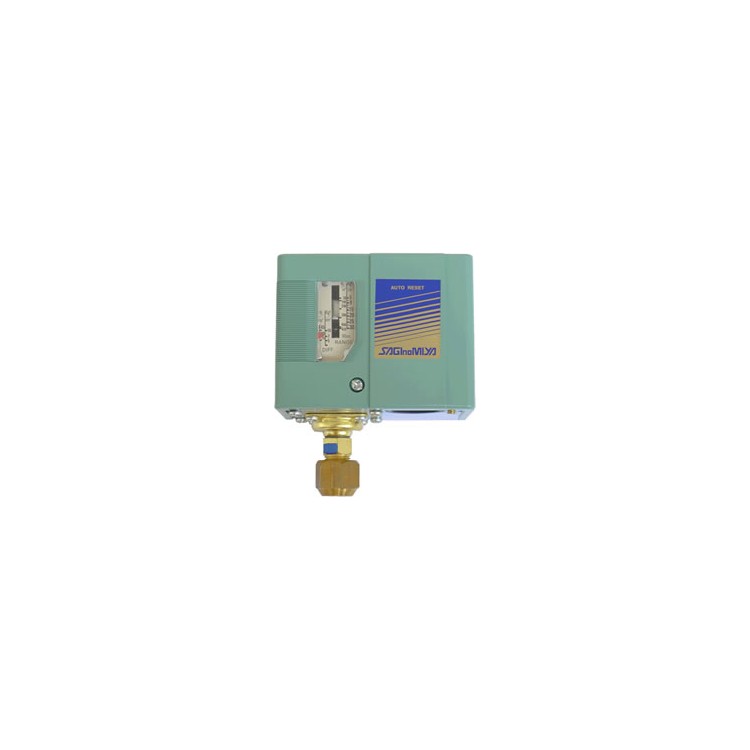

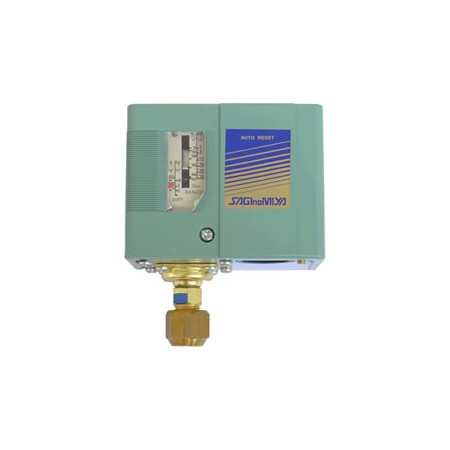

Saginomiya SNS-C101X
Saginomiya SNS-C101X
Saginomiya

Saginomiya SNS-C101X

  • Type SNS is standard model. Reliable performance, and
    long life products.
  • Type HNS for high pressure safety cut out
  • Scale plate with significantly clear visibility
  • Compact and light weight
  • Fluid temperature: －20 to 120°C
  • Ambient temperature: －20 to 70°C
$39.90 No tax
Add to wishlist
Share
Description

Compact size smallest and lightest in the industry.
Scale plate with significantly clear visibility.
For universal application.

Specifications
SNS-C101X
Connection
1/4"
Refrigerant
R22
R134a
R404a
R407C
Reset function
not present
Diff.press.setting range [Max]
0.05MPa (0.5kgf/cm2)
Diff.press.setting range [Min]
0.015MPa (0.15kgf/cm2)
Range [Max]
0.1MPa (1kgf/cm2)
Range [Min]
-0.06MPa (-50cmHg)
Resources
SNS_HNS Download (545.33k)
