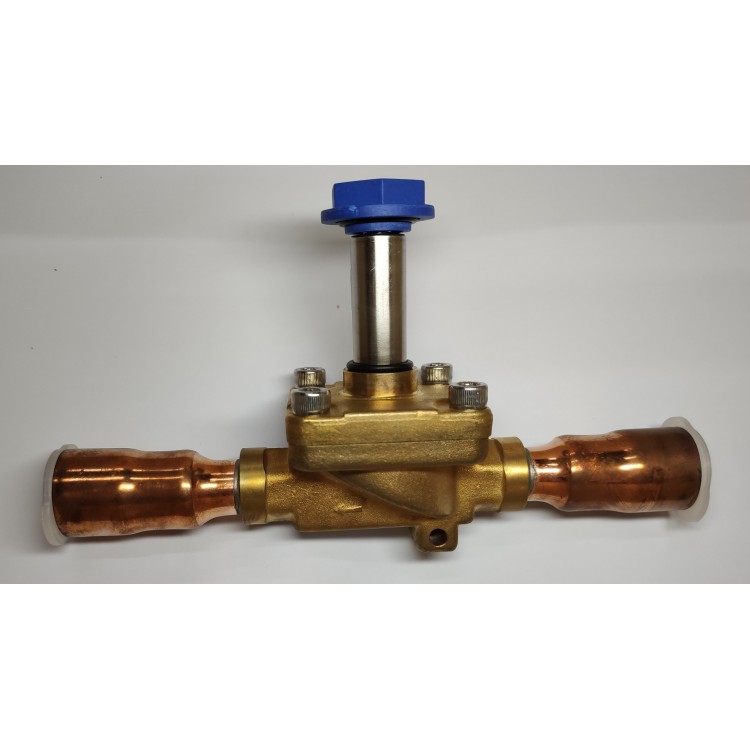

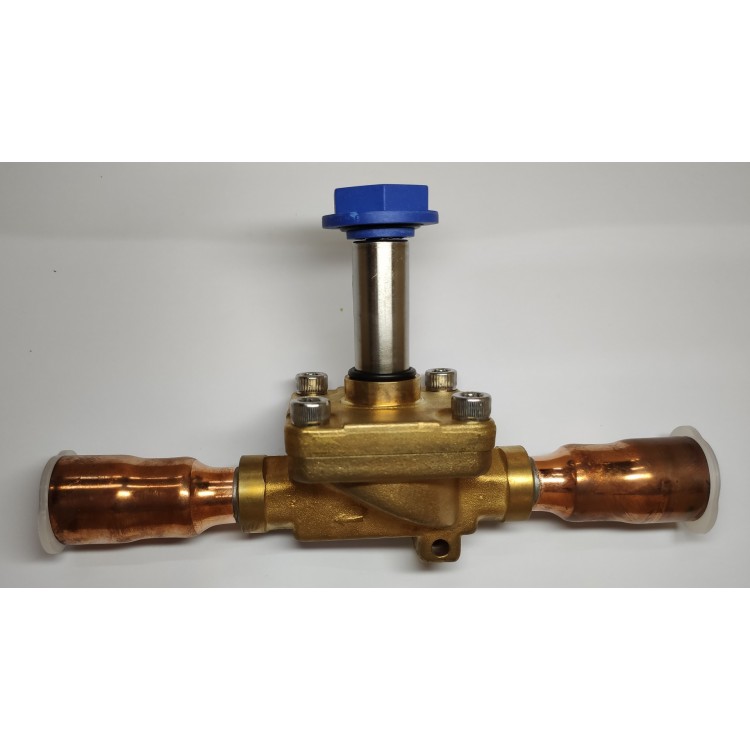

Sanhua solenoid valve MDF-A03-3H001 ODF 1/4

$23.90 No tax

Description

Applicable for all common HFC, HFO refrigerants such as: R134a, R404A, R407A/F, R407C, R410A, R448A, R449A, R450A, R452A, R513A, R507A¹⁾
Medium temperature:
- - MDF 2H...22H and MDF 2L...15L: -30ºC/105ºC
- - MDF 25H...40H: -40ºC/140ºC
Ambient temperature: -30°C to +55°C
Relative humidity: 0 to 95% RH
Installation position:
- Liquid, suction and discharge line
- Preferably coil upwards and flow direction corresponds to the arrow
Declaration according to LVD or PED
SANHUA SOLENOID VALVE COIL 220-240V MQ-A0322G-000001 sold separately
